We manufacture Optical Parts with high-grade material, proper & advanced techniques, perfectly test equipment. High-quality productions meet the demands of developing test instrument as well as our customers.

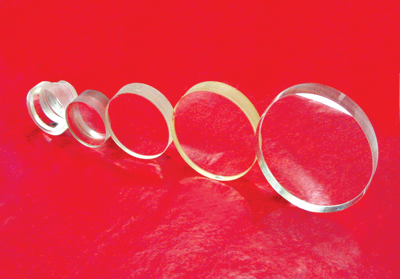

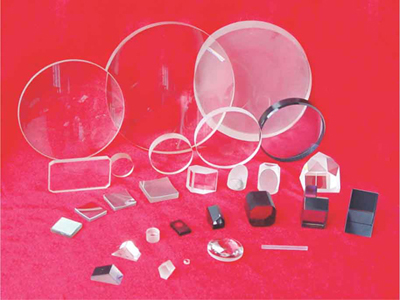

XQL-01 lens and mirror
The lens and mirrors we made are using High-quality optical materials, They are widely used in optical instrument system and image system.
DiameterΦ(mm) | Focal length | Cerror of center | ΔN PV | Surface quality | ||
min | max | min | max | |||
5 | 1000 | (1±1%)f’ | 1′ | 3′ | (0.05～0.5)λ | 10/5～80/50 |

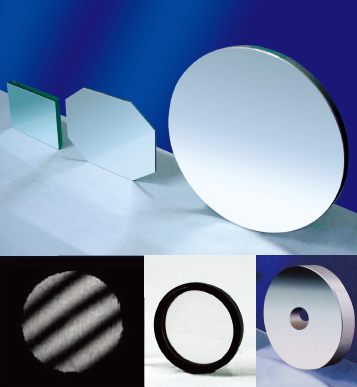

XQL-02 Optical Parallel and Plane Mirror
These high-precision plane and parallelism mirrors are used as standard mirror and a beam-splitter in Precision-Measuring-Instruments. The PV of Φ150 Standard Plane we made can arrive λ/30 @632.8nm.
DiameterΦ(mm) | planeness | parallelism | ΔN PV | Surface quality | |
Φmin | Φmax | ||||
5 | 1000 | 1λ～λ/20 | 3′～2″ | (0.05～0.5)λ | 10/5～80/50 |

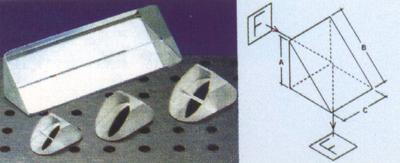

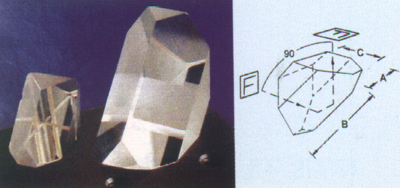

XQL-03 Prism
Various kind of right angle, half-pentagonal, pentagonal, roof, beam splitter and dispersing prisms for each customer with excellent image quality.
Diameter (mm) | Planeness | Parallelism | ΔN PV | Surface quality | ||
Amin | Amax | θmin | θmax | |||
3 | 100 | 1λ～λ/10 | 2″ | 5′ | (0.1～0.5)λ | 10/5～80/50 |

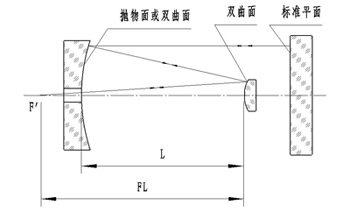

XQL-04 Aspherical Lens and Aspherical mirror
Hand-made hight-precision aspherical optical parts is one of our major special processing capacity，Including: Aspherical Imagery Objective Lens, Aspherical Telescope System,Standard Paraboloid Mirror，Aspherical Collecting Lens.
DiameterΦ(mm) | D/F | Focal length | ΔN PV | Surface quality | |
Φmin | Φmax | ||||
15 | 1000 | 1/1～1/200 | (1±0.5%)f′ | 2λ～λ/8 | 80/50 |

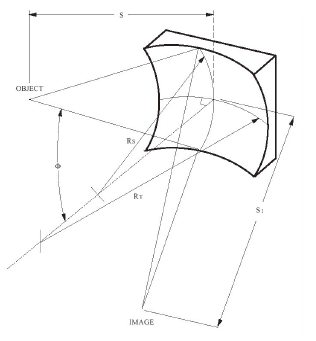

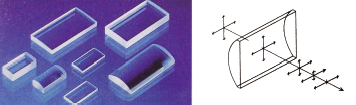

XQL-05 Tire(doubie R)and Cylirldrical Optical Parts
Tire(double R) Optical Parts is one of our major special processing capacity. Including:various size Tire(double R) Mirror and Cylindrical Lens、Mirror.
Diameter (mm) | Radius range | Radius error | ΔN PV | Surface quality | ||
Amin | Amax | |||||
5 | 100 | 10～1200 | (1±0.05%)R | 2λ～λ/8 | 10/5～80/50 | |
